JL AUDIO 10W0V2-4 10" SUBWOOFER 300 WATTS
- Impedance 4 Ohm
- Thermal power limit : 300 watt
- Mounting Depth 4.90″
- DMA Motor System
- Elevated frame cooling
JL AUDIO 10W0V2-4 (10W0V2) 10″ 4-Ohm 300W SUBWOOFER
Free Air Resonance (Fs) : 32.09 Hz
Electrical “Q” (Qes) : 0.640
Mechanical “Q” (Qms) : 10.752
Total Speaker Q (Qts) : 0.604
Equivalent Compliance (Vas) : 1.095 cu. ft. / 31.01 liters
One-Way, Linear Excursion (Xmax) : 0.45 in. / 11.4 mm
Reference Efficiency (no) : 0.154%
Efficiency (1W/1m) : 84.07 dB SPL
Effective Piston Area (Sd) : 48.909 sq. in. / 0.0316 sq. m.
DC Resistance (Re) : 4.280 ohm
Nominal Impedance (Znom) : 4 ohm
Thermal Power Handling (Pt) : 300W
Driver Displacement : 0.034 cu. ft. / 0.96 liters
SPECIFICATIONS
Subwoofer Size : 10″
Design : N/A
Power Handling (RMS per Speaker) : 150 Watts
Power Handling (MAX per Speaker) : 300 Watts
Power Handling (Combined) MAX : N/A
Sensitivity : 84dB
Frequency Response : 25Hz~250Hz
Impedance : 4-Ohms
Mounting Depth : 4.9″
Approximate Weight : 8.5 LBS
Related Products
-
Clarion CMSW10.1 10-Inch Single 4 Ohm Voice Coil Subwoofer
350 Watts of Maximum Music Power 10? Mica-Injection Polypropylene Woofer ConeSanoprene Rubber Surround Meets Salt/Fog and UV Exposure Standards (ASTM B117/D4329)High Impact Centrex..More Info
Details$229.99$229.99 -
PYLE PPA-10 Professional Premium Woofer
10"/600 wattsStamped Steel basketsStrong black paper coneCloth edge suspensionBumped and vented pole piece..More Info
Details$43.96$24.65 -

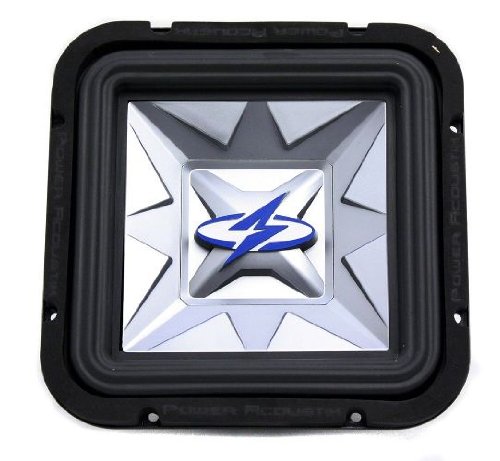

Brand New Power Acoustik Psq-10w 10" 1800 Watt Square Car Subwoofer with Top of the Line Quality Aluminum Voice Coil Former
10" 1,800 watt square subwooferSimilar in power and quality to a Kicker Solo Baric L7 but costs half the price!700w RMS Rated28% More Cone Area Than Round WooferStamped Steel Bask..More Info
Details$118.18 -
Boss CX104DVC 10" Subwoofer Dual 4ohm Voice Coils
10-inch subwoofer with 1200 watts maximum power handlingPoly injection coneDual 4 ohm voice coils for wiring versatilityFrequency Response : 35Hz - 2.2kHzMounting Depth : 5-7/8 I..More Info
Details$59.00$34.56 -

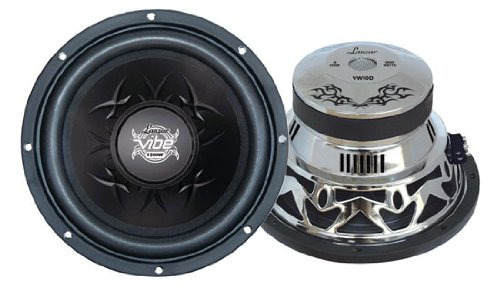

Lanzar VW10D Vibe 10-Inch 1200 Watt Dual 4 Ohm Chrome Subwoofer
